NoMachine – An Advanced Remote Desktop Access Tool

Working remotely is not a new thing for Linux Administrators. Especially when he/she is not in front of the server. Generally, the GUI is not installed by default on Linux servers. But there may some Linux Administrators who choose to install GUI on Linux servers.

When your server has a GUI, you may want to remote the server with full desktop experience. To do that you may install VNC Server on that server. In this article, we will cover about NoMachine as an alternate Remote Desktop Tool.

What is NoMachine

NoMachine is a remote desktop tool. Just like VNC. So what is the difference between NoMachine with the other? The most important factor is speed. The NX protocol provides near local speed responsiveness over high latency and low bandwidth links. So it feels like you were directly in front of your computer.

Install NoMachine In Linux

Access Any Remote Desktop

Features

NoMachine version 4.0 has many key features. When you connected to NoMachine-enabled computer, you can work with any content such as documents, music, videos, as if you were in front of your computer. You can also have the same desktop environment from where ever you are connected.

Share Documents

Share Documents

If you want to print files or documents on the remote computer, you can print them in the local computer. If you put your USB flash disk into your local computer, you can also put the files into the remote computer.

Drive Sharing

Drive Sharing

For more detail features, you can visit NoMachine website.

Scenario’s

Since the advantage of NX protocol is speed, you may see these scenario’s works. Working remotely for mobile workers with full desktop experience Implement thin-client scenario to reduce PC procurement cost. Users can work with a low – spec PC but gain full desktop experience.

Installing NoMachine Remote Desktop Tool

For those who ever used version 3.5, they will find that version 4.0 provide only a single file. It simplifies installation process since you only need to download one single file. NoMachine supports Linux, Windows, Mac OS X and even Android.

For Linux, NoMachine is available in RPM, DEB format and TAR.GZ . Both in 32-bit and 64-bit. NoMachine DEB format can be downloaded from it’s download page. On Debian, Ubuntu and Linux Mint you may install it using dpkg command.

On 32-Bit Systems
$ sudo wget http://web04.nomachine.com/download/4.0/Linux/nomachine_4.0.352_1_i386.deb
$ sudo dpkg -i nomachine_4.0.352_1_i386.deb
On 64-Bit Systems
$ sudo wget http://web04.nomachine.com/download/4.0/Linux/nomachine_4.0.352_1_amd64.deb
$ sudo dpkg -i nomachine_4.0.352_1_amd64.deb

On RHEL, CentOS and Fedora, you may install it using the RPM command.

On 32-Bit Systems
# wget http://web04.nomachine.com/download/4.0/Linux/nomachine_4.0.352_1_i686.rpm
# rpm -ivh nomachine_4.0.352_1_i686.rpm
On 64-Bit Systems
# wget http://web04.nomachine.com/download/4.0/Linux/nomachine_4.0.352_1_x86_64.rpm
# rpm -ivh nomachine_4.0.352_1_x86_64.rpm

Running NoMachine

Once NoMachine installed, you will find it in your Start Menu. Or you may check it via CLI using command.

/usr/NX/bin/nxplayer

When you run NoMachine for the first time, there is a wizard to help you configure your first connection. Here are the steps:

Create a Connection

You will be asked to create a connection. It will include Name (connection), Host (destination), Protocol and Port. By default, NX protocol will work on port 4000. But you can switch to SSH protocol if you want.

Create a Connection

Create a Connection

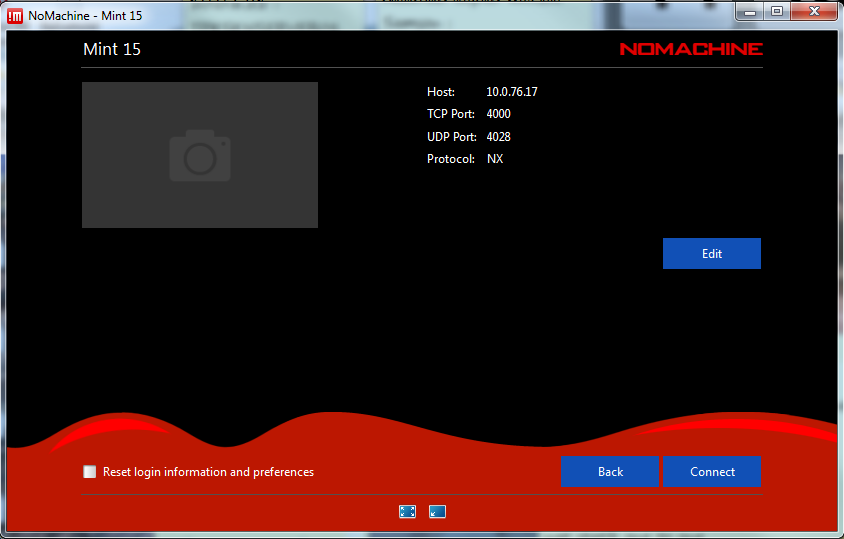

Then a confirmation screen will appear. You can press Connect button to run the connection.

Confirmation Screen

Confirmation Screen

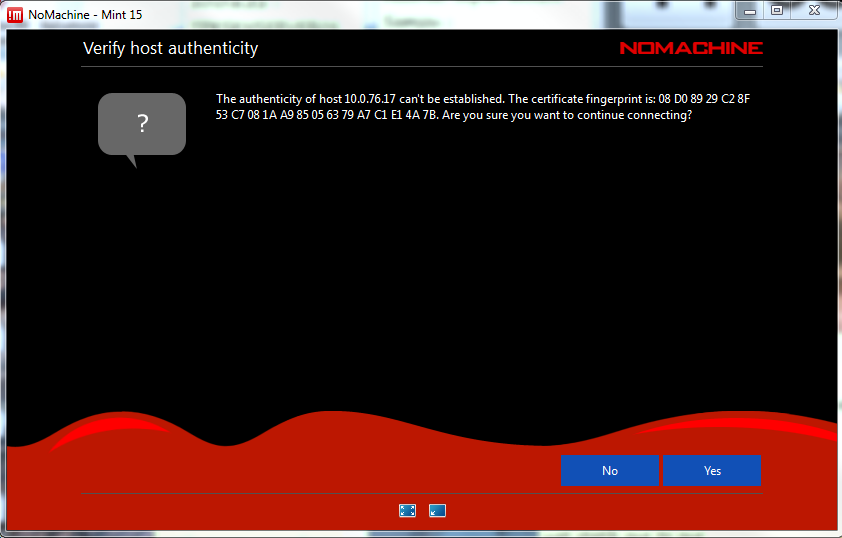

Verify Host Authenticity

When you run NoMachine for the first time, NoMachine will ask you to verify the destination host authenticity.

Verify Host Authenticity

Verify Host Authenticity

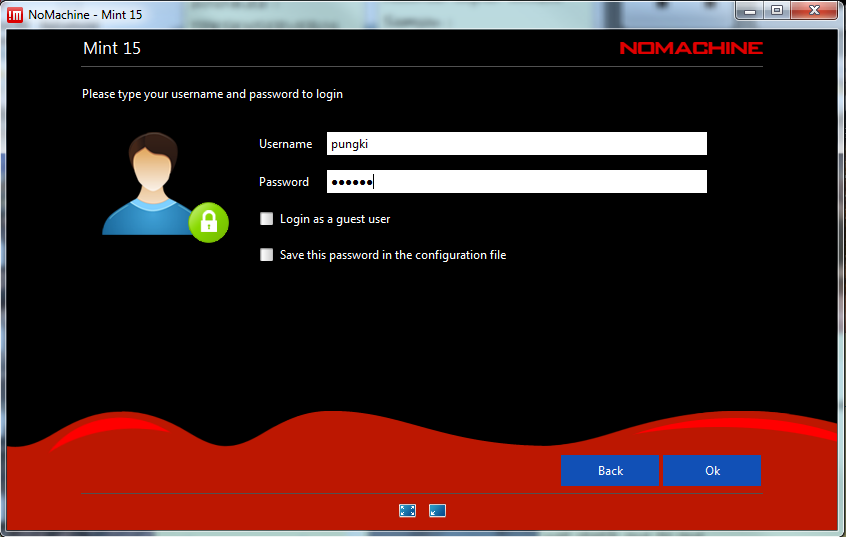

Provide User Credential to Login

Now you will be asked to provide user credential to login to the destination host. If the destination host allows Guest login, you may click “Login as a guest user” parameter. You can save the user password in the configuration file if you want. Just click “Save this password in the configuration file parameter”. Next time, you will not need to enter password again to connect.

User Credentials

User Credentials

Connecting to Destination Host

After providing user credential, NX will show you a first guide to use NoMachine. There are a lot of icons that you can click on it. It covers the screen, input, devices, display, audio, mic, recording and connection.

NoMachine Wizard 1

NoMachine Wizard 1

NoMachine Wizard 2

NoMachine Wizard 2

NoMachine Wizard 3

NoMachine Wizard 3

NoMachine Wizard 4

NoMachine Wizard 4

After you finish with the guide, then you will see your destination host appear with full desktop capacity. On the destination host, a notification will show if a user is connected or disconnected.

User Connected

User Connected

User Disconnected

User Disconnected

Although NoMachine is basically free, Free Edition has a limit of 2 concurrent connections only. If you need to have more concurrent connections, you may use the Enterprise Edition. And before you choose what solution you need, you should look at NoMachine feature comparison.

Best Affordable Linux and WordPress Services For Your Business
Outsource Your Linux and WordPress Project and Get it Promptly Completed Remotely and Delivered Online.

If You Appreciate What We Do Here On TecMint, You Should Consider:

  1. Stay Connected to: Twitter | Facebook | Google Plus
  2. Subscribe to our email updates: Sign Up Now
  3. Get your own self-hosted blog with a Free Domain at ($3.45/month).
  4. Become a Supporter - Make a contribution via PayPal
  5. Support us by purchasing our premium books in PDF format.
  6. Support us by taking our online Linux courses

We are thankful for your never ending support.

Pungki Arianto

Currently I am a Linux/Unix administrator. But I also play Windows both in server and desktop area. Interested in information technology, information security and writing.

Your name can also be listed here. Got a tip? Submit it here to become an TecMint author.

RedHat RHCE and RHCSA Certification Book
Linux Foundation LFCS and LFCE Certification Preparation Guide

You may also like...

28 Responses

  1. sikander says:

    Hi,
    we are unable to use No Machine between the Ubuntu and windows Machine.
    As we have installed the No machine server at the both machine.On windows machine log getting following error:-
    No Display found .
    Please provide any update on that.

  2. sikander says:

    Hi,

    As we are trying to remotely access the windows machine from the ubuntu machine using the No Machine .We have installed the No machine server on both the machines.But when we trying to connect from Ubuntu machine to windows machine then getting the following error on the windows machine in the No Machine server log :-
    No display available.

    Server side error:-
    Cannot connect to the requested display.

    But between the two Ubuntu machines its working fine .
    Please provide an update on this.

  3. Henrik Wallin says:

    NoMachine is having the same core features as Cendio’s ThinLinc, where I, just like Scott, have found the (automatic) suspend a session feature extremely useful when moving around to different locations.

    But what would be interesting is a head-to-head comparison between NoMachine and ThinLinc. How does local printing, USB-sticks and local drives, server-cluster configurations, server side generated graphic animations, mixed operating systems and so on work? L M Ericsson is the only ones I know that have done extensive comparative testing like this, but they haven’t written a public article about it of course.

  4. Rob says:

    Xrdp is easier, better. I am a Linux/Windows admin too. Works like a charm on RHEL and CentOS. Two packages installation, access from any Win PC through Remote Desktop. That’s it.

  5. Scott Irving says:

    NoMachine NX code is available. See the FreeNX product.

    I have used NoMachine NX and FreeNx for nearly 10 years, for both local connections and connections to the opposite side of the planet, i.e low and high latency. It has always been fast stable, and effective tool. When I need to remotely connect it is my go to tool. VNC, and most others are way to slow for my work which is graphics intensive.

    The ability to suspend a session and then pick it up from another machine is very handy. The other really nice thing about the suspend feature is on unstable networks. If the network becomes unavailable, you don’t lose your work, just reconnect and your right where you were. I also really like that it opens a separate session, and a person on the console is undisturbed.

    In a corporate setting I highly recommend purchasing a license. This is an excellent company and the income is needed for them to continue to provide development and support.

  6. meanpt says:

    This is a closed source product. In the current days not being able to audit the code is a huge drawback

    • Scott Irving says:

      There are open source versions available. NoMachines is a trustworthy company and while you won’t be able to see the commercial code, I don’t think there is much to worry about. Besides, the NSA has got ya covered….

    • Harri says:

      I completely agree to this.

  7. Hossein says:

    Could not connect to the server.

    Error is 107: Connection refused

  8. Mike says:

    Compared to the previous version (3.5) I think this is a step back as a Linux client because they removed the virtual sessions. Version 4 now works more like VNC. If you need the virtual sessions they have a different payed product. I also found that connecting to a remote system with multiple displays is not well thought especially when local resolution is smaller than the remote one. Versions 3.5 and 4 clients cannot coexist on the same computer.

  9. Innocent Bystander says:

    Can you please clarify “When you connected to NoMachine-enabled computer”?
    What is a NoMachine-enabled computer? Does that means a machine on the cloud managed by MoMachine or does that mean another machine where you must also install NoMachine? The guide above describes only one machine (the one which initiates the Remote Control). Is there anything to do on the remote machine?

    • Pungki Arianto says:

      NoMachine-enabled computer means another machine that also installed NoMachine software. On the remote site, I also installed NoMachine software. That’s why I can remote-control the computer on the remote site.

  10. jean says:

    Very Nice Program, but in my case the connection is very slow.
