Monitor Server Logs in Real-Time with “Log.io” Tool on RHEL/CentOS 7/6

Log.io is a small simple but effective application build on top of Node.js and Socket.io, which allows to monitor Linux servers log files in real time through web interface screen widgets.

Install Log.io In CentOS
Log.io – Real Time Server Log Monitoring

This tutorial will guide you on how you can install and monitor any local log files in real time with Log.io installed on RHEL/CentOS 7/6.x by configuring Log.io harvester file to monitor any local changes to log files.

Step 1: Add Epel Repositories

1. CentOS Epel repositories provides the binary packages for Node.js and NPMNode Packaged Modules. Install Epel repositories by issuing the following command.

On RHEL/CentOS 7
# yum install http://fedora.mirrors.telekom.ro/pub/epel/7/x86_64/e/epel-release-7-2.noarch.rpm
On RHEL/CentOS 6
--------------------- On RHEL/CentOS 6.x - 32 Bit ---------------------
# yum install http://fedora.mirrors.telekom.ro/pub/epel/6/i386/epel-release-6-8.noarch.rpm

--------------------- On RHEL/CentOS 6.x - 64 Bit ---------------------
# yum install http://fedora.mirrors.telekom.ro/pub/epel/6/x86_64/epel-release-6-8.noarch.rpm
Install Epel Repository in CentOS 7
Install Epel Repository

2. After you added Epel Repos on your system, do a system upgrade by running the following command.

# yum update

Step 2: Install Node.js and NPM Packages

3. Node.js is a Javascript server-side programming platform which allows you to create network applications with backend functionality. NPM (Node Package Manager) is practically the package manager for Node.js. So, on the next step go ahead and install Node.js and NMP binaries on your system through YUM package manager by issuing the following commands.

# curl --silent --location https://rpm.nodesource.com/setup_5.x | bash -
# yum install -y nodejs
Install Node js in CentOS
Install Node js in CentOS 7

Step 3: Install and Configure Log.io Application

4. Log.io application must be installed on your system through NPM by specifying a valid local system user, through which the installation must take place. While you can use any valid system user to install Log.io, I personally recommend installing the application through root user or other system user with root privileges.

The reason for using this approach is that Log.io must have access to read locally log files and a user with non-privileges root privileges usually can’t access and read some important log files.

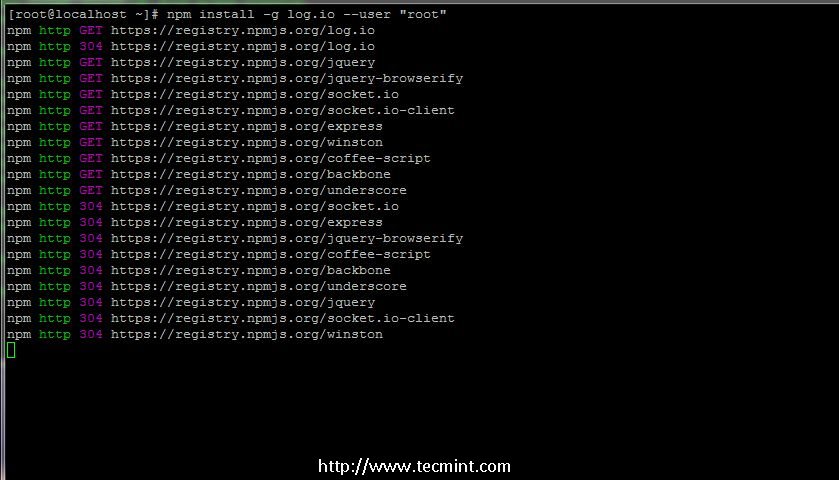

So, login with root account and install Log.io application through root account by issuing the following command (if you use other user replace root account with your system user accordingly).

# npm install -g log.io --user “root”
Install Log.io in CentOS
Install Log.io Monitoring

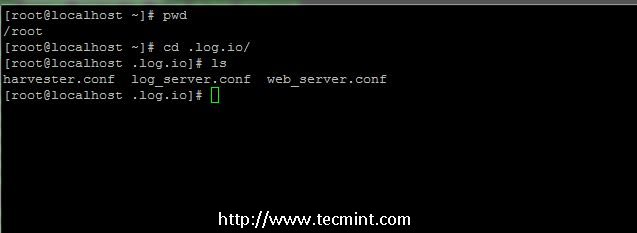

5. After the application has been installed change your working directory to Log.io folder, which is hidden, and do a directory listing to visualize folder content in order to configure the application further.

# pwd  		[Make sure you are on the right path]
# cd .log.io/
# ls
Log.io Files
Log.io Files

6. Now it’s time to configure Log.io to monitor local log files in real time. Let’s get an inside on how Log.io works.

  1. The harvester file watches for changes in the specified local log files declared in its configuration and sends its output via socket.io TCP
    protocol which further send the messages to Log.io local server or any other remote server declared with its IP Address ( 0.0.0.0 address specified on harvesters broadcasts to all log.io listening servers) – file harvester.conf
  2. Log.io server binds on all network interfaces (if not specified otherwise in log_server.conf file) and waits for messages from locally or remote harvesters nodes and sends their output to log.io Web server (0.0.0.0 means that it waits for messages from any local or remote harvesters) file log_server.conf
  3. Log.io Web server binds on all network interfaces, listens for web clients connections on port 28778 and processes and outputs the messages that it receives internally from log.io server – file web_server.conf

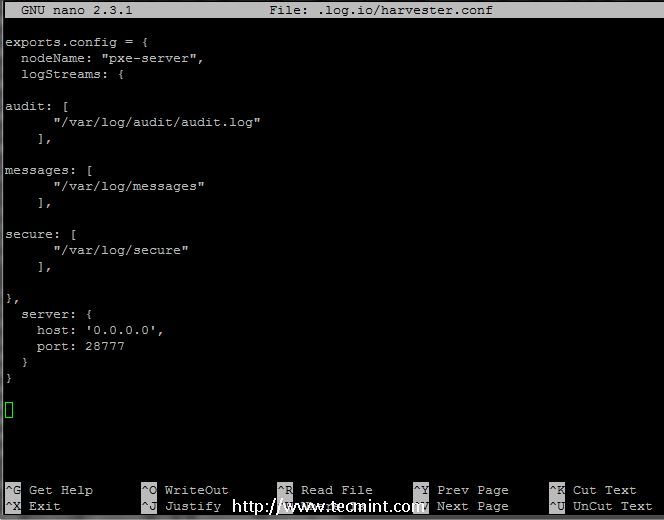

First open harvester.conf file for editing, which by default only monitors Apache log files, and replace nodeName statement to match your hostname and define the logStreams statements with what internal log files you want to monitor (in this case I’m monitoring multiple log files such as audit, messages and secure logs). Use the below file excerpt as a guide.

# nano harvester.conf

Harvester file excerpt.

exports.config = {
  nodeName: "pxe-server",
  logStreams: {

audit: [
      "/var/log/audit/audit.log"
    ],

messages: [
      "/var/log/messages"
    ],

secure: [
      "/var/log/secure"
    ]

},
  server: {
    host: '0.0.0.0',
    port: 28777
  }
}
Log.io Harvester Configuration
Log.io Harvester Configuration

Also if you don’t need harvester output to be sent to a remote Log.io server change the line host on server statement to only send its output locally by modifying 0.0.0.0 address with loopback address (127.0.0.1).

7. For security reasons, if you are not expecting remote harvesters output to your local Log.io server open log_server.conf file and replace 0.0.0.0 address with loopback address (127.0.0.1).

# nano log_server.conf
Configure Linux Logs
Configure Logs

8. Other security features such as credentials login, HTTPS or restriction based on IPs to Log.io web server can be applied on web server-side. For this tutorial I will only use as a security measure just credential login.

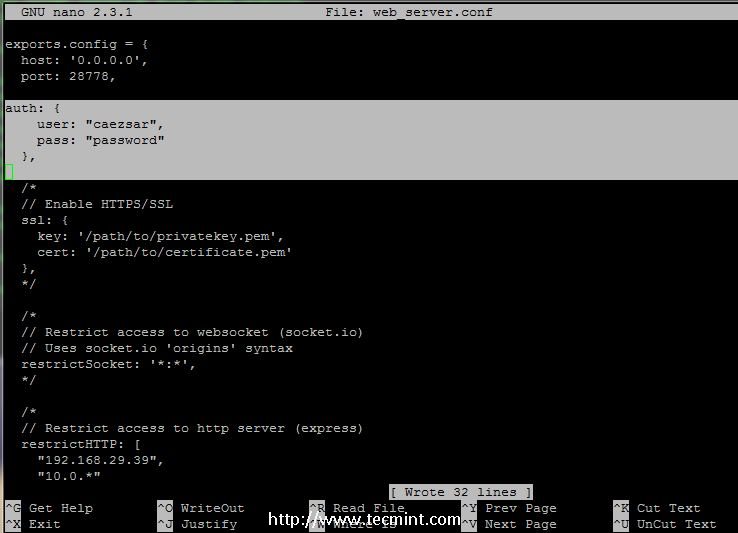

So, open web_server.conf file, uncomment the entire auth statement by deleting all slashes and asterisks and replace user and pass directives accordingly as suggested on the bottom screenshot.

# nano web_server.conf
Configure Log.io Monitoring
Configure Log.io Monitoring

Step 4: Add Firewall Rule and Start Log.io Application

9. In order to gain web access to Log.io server add a rule on RHEL/CentOS 7 Firewall to open TCP 28778 port by issuing the following command.

# firewall-cmd --add-port=28778/tcp --permanent
# firewall-cmd --reload
Open Log.io Port on Firewall
Open Log.io Port on Firewall

Note: RHEL/CentOS 6.x users can open port 28778 on iptable firewall.

Step 5: Start Log.io Application and enter Web Interface

10. In order to start Log.io log monitoring application assure that your current working directory is root’s home .log.io and use the following commands in the following order to start application.

------------ First start server, put it in background and press Enter key ------------
# log.io-server &

------------ Start log harvester in background ------------
# log.io-harvester &
Start Log.io Service
Start Log.io Service

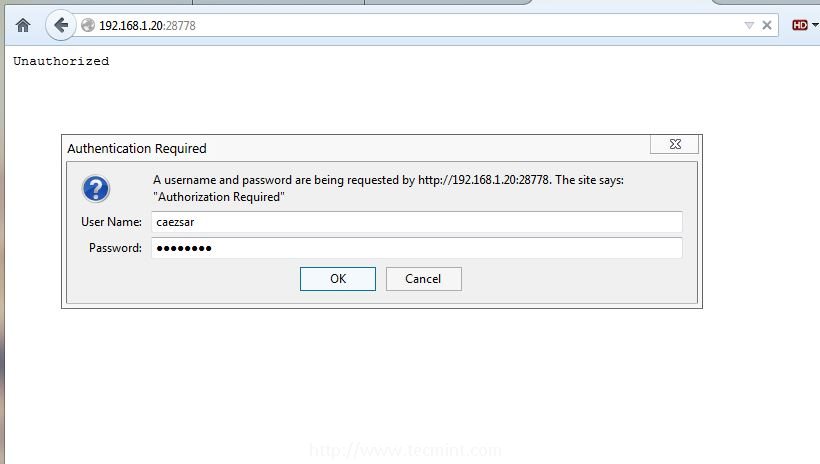

11. After the server has been started open a browser, enter your servers IP followed by 28778 port number using HTTP protocol on URL address and a prompt demanding your login credentials should appear.

Enter your user and password configured on step 8 to proceed further and Log.io application should now be visible on your browser presenting monitored log files in real time.

http://192.168.1.20:28778
Login to Log.io Monitoring
Login to Log.io Monitoring

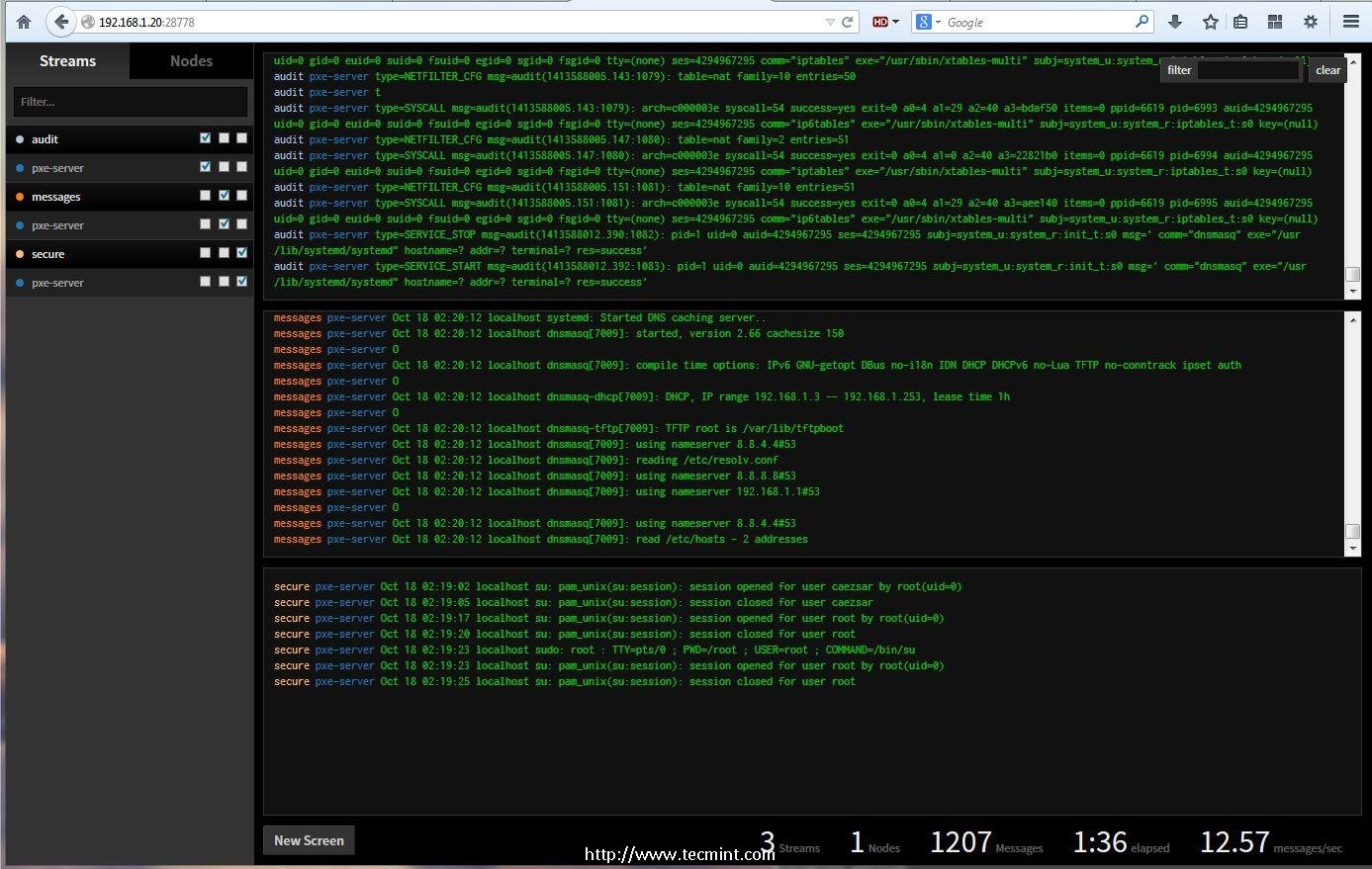

Real Time Log Monitoring with Log.io
Real Time Log Monitoring with Log.io

On Web interface add new screens and organize your streams or nodes accordingly.

12. To stop Log.io application run the following command.

# pkill node

Step 6: Create Log.io Manage Script

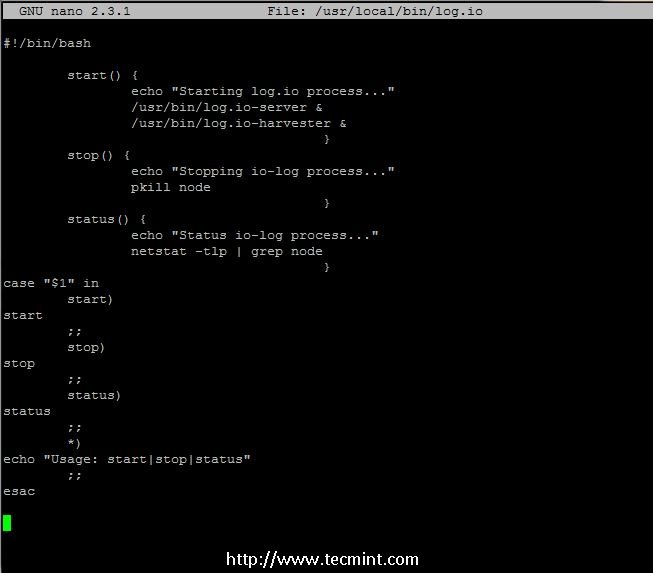

13. In order to use a command that manages Log.io application with three switches ( start, stop and status) create the following script named log.io on /usr/local/bin executable directory and append execution permissions to this script.

# nano /usr/local/bin/log.io
# chmod +x /usr/local/bin/log.io

Add the following excerpt to this script file.

#!/bin/bash

                start() {
                echo "Starting log.io process..."
                /usr/bin/log.io-server &
                /usr/bin/log.io-harvester &
                                         }

                stop() {
                echo "Stopping io-log process..."
                pkill node
                                         }

                status() {
                echo "Status io-log process..."
                netstat -tlp | grep node
                                         }

case "$1" in
                start)
start
        ;;
                stop)
stop
        ;;
                status)
status
                ;;
                *)
echo "Usage: start|stop|status"
        ;;
Esac
Log.io Startup Script
Log.io Startup Script

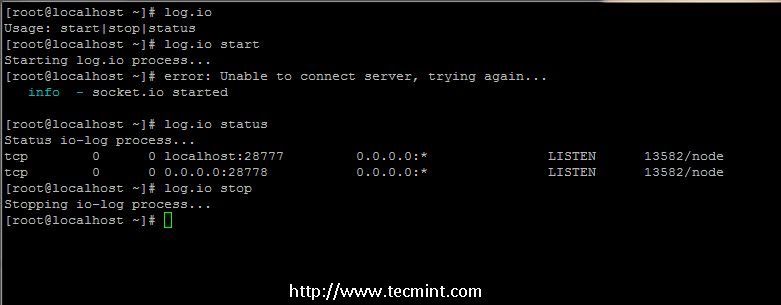

14. To start, stop or view Log.io status login with root account (or the user that Log.io app has been installed) and just run the following commands to easily manage the application.

# log.io start
# log.io status
# log.io stop
Manage Log.io Script
Manage Log.io Script

That’s all! In my opinion Log.io is an excellent and effective web application to monitor local or remote servers log files is real time and get an outlook on what is going internally in the systems and especially to debug server problems when systems tend to become unresponsive or crashes, without the need to use a console.
