How to Setup Failover and Load Balancing in PFSense

Failover is a type of backup operational mode in which the operations of a system components such as network are assumed by secondary system, only when the Primary system becomes unavailable due to system failure or any scheduled down times.

Setup Failover Load Balancer in PFSense
Setup Failover Load Balancer in PFSense

In this setup, we will see how to setup Failover and Load balancing to enable PFSense to load balance traffic from your LAN network to multiple WAN’s (here we’ve used two WAN connections, WAN1 and WAN2).

For example, If in-case, one of your WAN connection went offline due to some network connectivity issues, in this case your second WAN will be automatically shifted from WAN1 to WAN2 by pinging one of your system IP, if there isn’t any reply from system, it will automatically shift from WAN1 to WAN2 or vice-versa.

Load Balancer will combine our both WAN connections to become one powerful internet connectivity. For example, if you’ve 2MB connection for WAN1 and 2MB for WAN2, it will combine both into one with 4MB to stabilize the network connection speed.

To setup Failover Load Balancer, we need at least three Ethernet cards with minimum 100MB/1GB as follows. The first NIC is used for LAN with static IP and other two with DHCP.

My Environment Setup
IP Address LAN	:	192.168.1.1/24
IP Address WAN1	:	From DHCP
IP Address WAN2	:	From DHCP

Before proceeding further, you must have a working PFSense installation, to know more on how to install pfsense, go through the following article.

  1. How to Install and Configure PFSense

Step 1: Configuring Network Interface

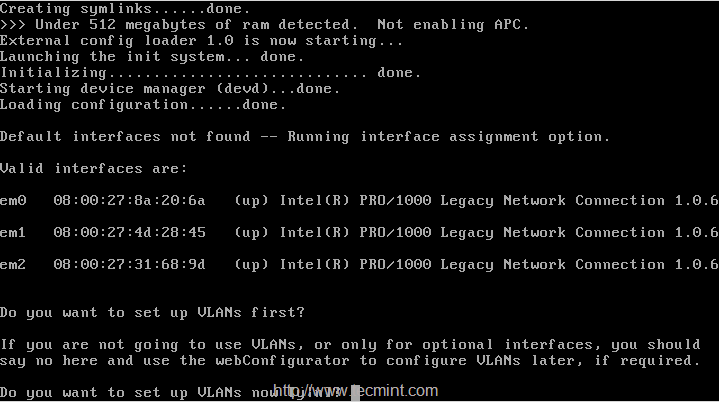

1. After installing PFSense, you will presented with the following screen with available interfaces to configure the network.

Configure Pfsense Interfaces
Configure Pfsense Interfaces

2. Choose 1st interface em0 as WAN1, IP will be assigned from DHCP, second interface will be em2 for LAN and add one more interface em01 (optional), this will be later changed to WAN2 with DHCP IP address. Here is the final interfaces assigned as follows.

Configure Network Interfaces
Configure Network Interfaces

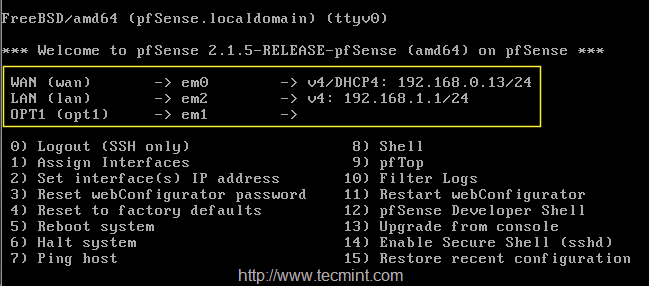

Configured Networks
Configured Networks

3. After configuring network interfaces, login into Pfsense dashboard at the following location and configure LoadBalancer.

https://192.168.1.1

4. After login into GUI, there you can see only WAN, LAN under the interface widgets as shown below.

Configured Interfaces
Configured Interfaces

5. To configure Interface choose “Interface” from the TOP menu and click on WAN to add the description to WAN1, then click on Save to make changes.

Configure WAN1 Interface
Configure WAN1 Interface

Again click on Interface and choose OPT1 and enable the interface to change description from OPT1 to WAN2.

Enable OPT1 Interface
Enable OPT1 Interface

Next, choose DHCP for IPv4 configuration type, or else choose IPv6 and configuration type as DHCP 6.

Configure WAN2 Interface
Configure WAN2 Interface

6. From the bottom of WAN2 page under Private networks, untick Block Private networks to unblock traffic from local networks, and block bogon networks. Save the changes by clicking on Save.

Configure Private Networks WAN2
Configure Private Networks WAN2

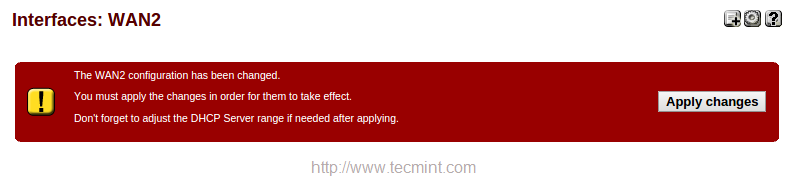

After making above changes, it will ask you to apply changes in the top of page, Click to confirm the changes.

Confirm WAN2 Changes
Confirm WAN2 Changes

Now you will get three interfaces in ‘Interface‘ widget in the Dashboard.

Confirm Interfaces
Confirm Interfaces

So, here we’ve configured 2 WAN for our pfsense. Now let us see how to configure our LoadBalancer for these configured WAN’s.

Step 2: Configuring Monitor IP

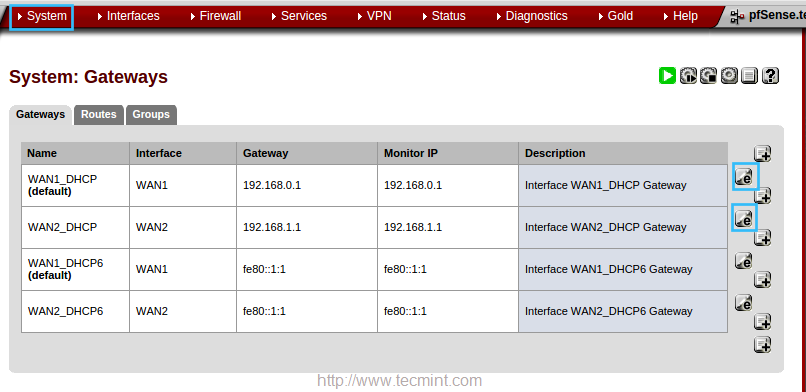

7. Before configuring Load Balance for pfsense, we need to configure a monitor IP for Load Balancer. Navigate to ‘System‘ menu in top and choose “Routing“.

System Gateways
System Gateways

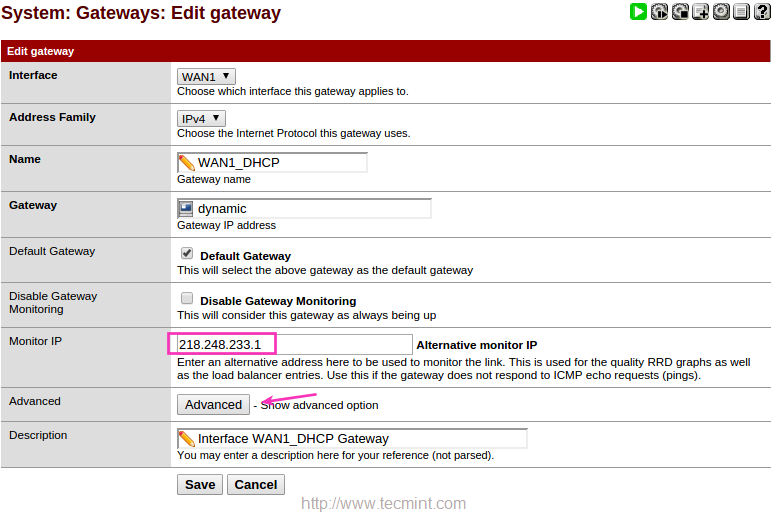

8. In the ‘Edit gateway‘ page, enter the IP address of monitor IP for both WAN1 and WAN2. In WAN1 I’m going to use my ISP DNS server IP 218.248.233.1. In WAN2 going to use Google public DNS 8.8.8.8.

Configure Monitor IP
Configure Monitor IP

9. After adding Monitor IP, click on Advanced and give a low value for DOWN, here I’m using 3 seconds to monitor the IP. Default will be 10 Seconds.

Monitor IP Failover
Monitor IP Failover

Use same settings for WAN2. Here I have used Google DNS instead of using my ISP DNS. Click save to exit.

Configured System Gateways
Configured System Gateways

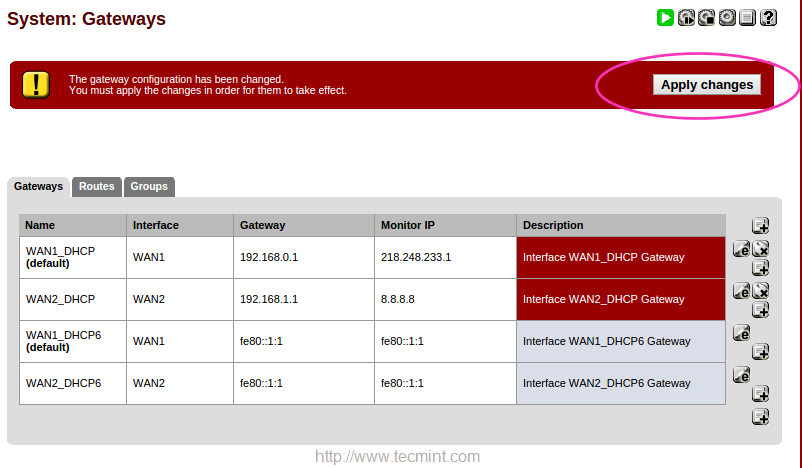

Click on Apply changes to make the changes permanent.

Confirm Gateways Settings
Confirm Gateways Settings
Babin Lonston
I'm Working as a System Administrator for last 10 year's with 4 years experience with Linux Distributions, fall in love with text based operating systems.

Each tutorial at TecMint is created by a team of experienced Linux system administrators so that it meets our high-quality standards.

Join the TecMint Weekly Newsletter (More Than 156,129 Linux Enthusiasts Have Subscribed)
Was this article helpful? Please add a comment or buy me a coffee to show your appreciation.

41 thoughts on “How to Setup Failover and Load Balancing in PFSense”

  1. I configured pfSense as described but found it does not work as documented (or at least as I interpreted it). In step 19 the rule with the TechmintADSL gateway will be valid for all IPv4 traffic and all IPv4 will be load balanced.

    The 2 rules with WAN1Failover and WAN2Failover as gateways will never be used since all traffic match the rule higher in the list. This is exactly what my configuration was doing.

    You would either have to limit the traffic for each rule so that they cover specific traffic that doesn’t overlap with another rule below it. In other words, you might have a rule with WAN1Failover that matches http/https traffic and another rule for TechmintADSL that matched anything to send everything else via load balancing.

    Reply
  2. Hello ! please i have a question how i can test the 2 WANs by putting one of them up or down
    i don’t know how to test it

    Reply
  3. I did exactly as in guide, but performance is horrible. With dual WAN my overall speed is same as one WAN.
    Tested with 5 clients connected to pfsense doing various different transfers over the internet.
    Please write how to fix this.

    Reply
  4. Hello I did these instructions and it was successfully been worked with the process but the problem is the traffic shaper or limiter is not working properly I set up some 2 mpbs in and out but the result in speed test is now with the given speed. how should i fix this?
    thank you in advance

    Reply
  5. Hi,

    In a corporate scenario, we have 2 link with 5 public IP each, resulting 10 public IP in total

    Once load balancing on PFsense is enabled, is it possible to combine it together?

    For example, the network is (Link 1/Link2) > PFsense > Microsoft TMG > Internal network
    Possible to publish services on all ten public IP?

    Reply
  6. Hello Sir, I just want to know, we have configured multi wan, in this case i think if one interface goes down another will be automatically up then why we need to create wan1 fail over, and wan2 fail over rule. correct me if i am wrong .

    Reply
    • @Lucas Soares,

      Pfsense = Router

      No this regarding load balancing between two NIC which connected to Internet in pfsense.

      Reply
      • The fail-over rules would be useful for traffic that you want to go through A SINGLE GATEWAY. For example, I have a setup where all HTTPS traffic goes through one gateway and is not balanced. But if that gateway is down I need it to failover to the next available gateway.

        You should only to create a single fail-over Gateway Group and set the gateway priority through the Tiers options. I did setup multiple fail-over groups though so I can have all SIP traffic on WAN1 with fail-over and all FTP traffic is on WAN2 with fail-over and so on and all 2082 traffic on WAN3, etc… This way I can keep my total traffic balanced between my 3 gateways.

        Reply
  7. Hi Babin Lonston,
    i already try your tutorial, i have problem , where connection switch wan1 to wan2 , able to ping google.com , but if i try browsing, google.com cant connect. please your advice. thanks

    Reply
  8. Hello Babin,

    We have a small hotel with 50 rooms, so 150 to 180 customers total.

    We give free wifi internet access to our customers through 5 wifi outdoor routers with different SSID like Hotel01, Hotel 02, etc.

    The main problem of our Local area is that the ISP companies can’t give us ADSL lines Up To 2Mbps, So we have 5 Lines of 2Mbps. :o

    This days we use them like 1 ADSL line to 1 Wifi Router and so on.

    I Read a lot topics here and I see some videos over You tube That explain how we can have Load Balancing – Multi Wan and Fail Over, but I see that anyone explains how you can do it with 3 or 4 or 5 connection.

    So the question is: Can we have Load Balancing – Multi Wan and Fail Over over 5 wan connections? Is it possible? Is it possible if we have different ISP companies? Like 3 Lines over ISP 1 And 2 Lines over ISP 2 and all them Load Balancing together? 8)

    Just for test I install Pfsense in old PC with 3 interface and with 2 wan connections (some ISP) and all work good. Load Balancing, Fail Over!! We get 3.8Mbps Download and 512 Up ( 2 X 256).

    So now I know that I can work with 2 lines, but before buy a server for that, so I thought why not post to your great and helpful Forum to ask!!

    The server that I have in mind will be Pfsense C2758 1U Rack Mountable with 2 or 4x Intel 1GbE. (When you start a job, start it with the right tools) :D

    I’m not a network expert or network administrator or IT manager, but I love Networks and Computers and i want to give to my hotel customers best facilities

    Thanks a lot. Great guide!!!

    Reply
    • Hi Bora550,

      You can do Load Balancing with the three connections, bare in mind that you also get fail over when using load balancing, but you should assign different weights to the connection (pfSense uses a scale from 1 to 5). In your case you can assign 4 to the 80M links and 1 to the 20M, in this way the load balancing algorithm will route more traffic through the 80M links.

      I hope it helps! :)

      Reply
  9. Quick query – I have 3 WAN connections.
    2 are at 80Mbps
    1 is at 20Mbps

    One person has suggested to not load balance all 3 but to balance with the 2x80s, and failover to the 3rd one.
    What do you think?

    Reply
  10. Say I have 5 WAN connections (yes, I really will… 1 cable connection and 4 4G LTE modems). That’s a lot of failover rules! What would you suggest in this situation? I was thinking about creating failover rules that account for 1 failure each out of the 5 connections (set remaining 4 on same tier) and then a sixth one where I have 2 tier 1, and 3 tier 2 connections. I figure I have to edit the config for the last failover rule on the fly (set the 2 tier 1 connections to the failed WANs) and I should have ample warning time to do that. Let me know your thoughts on this!

    Also, have you experienced any issues relating to websites making sure a user keeps connecting from the same IP (sticky connections)? Or at least problems with Google, Facebook, Twitter (or any big all HTTPS site)? Thanks for any suggestions you’re able to provide and this is the best write-up I’ve seen so far on thsi topic!

    Reply
  11. Hi – really nice post, thanks. Will this work with 3 x PPPoE, 2 set as load balancing and one set as failover?
    If yes as I suspect, can the failover connection still accept incoming packets and forward to one of our servers?

    Reply
    • //Hi – really nice post, thanks.//
      Thanks for your valuable feedback
      //Will this work with 3 x PPPoE//
      Yes this will work with 3 PPPOE connections without any issue.
      //2 set as load balancing//
      Only one Loadbalacing will be good idea, Cos combining three connections to get 1, If your three connections each with 24 MB connections your LB will get 72 MB connection.
      //one set as failover?//
      Can have 2 set of failover.

      Reply
    • //Dont work here… pfsense 2.2… :( all WAn’s are pppoe!//
      Sure it will work seems there is some of mis-configuration

      Reply
  12. What modifications needs to be done in this tutorial if I have only one WAN interface? Also, can you please explain load balancing further (as I am not an expert, my basics not clear!), my specific question is if I combine 2+2 Mbps WAN connections, will I get 4 Mbps effective download speed?

    Thank you very much for this great article, Tecmint is helping us a lot!!

    Reply
    • //What modifications needs to be done in this tutorial if I have only one WAN interface? //
      If you have only one interface you can’t do Loadbalancing, Failover.

      //Also, can you please explain load balancing further (as I am not an expert, my basics not clear!), my specific question is if I combine 2+2 Mbps WAN connections//
      Yes you will get 4 MB speed try to download anyone of file and check. Only if you have configured Loadbalancer this will work.

      Thanks for your comment… Let me know how went through for you.

      Reply
      • Thanks for your valuable reply! I will surely setup and test this great feature. Any same future article/same tutorial for combining pfSense+Squid Proxy+LoadBalancer/Failover will be welcome! Till now I am using just IPtables firewall+Squid Proxy, but now I am looking for more advanced configurations like these, can you point me to any tutorial which combines pfSense Firewall+Squid Proxy+Load Balancer & Failover?

        Thanks again, Tecmint & its experts are really empowering us!!

        Reply
  13. Thanks my friend… I have been looking for it by long time. But I have over 15% of loss on wan1 with google gateway and i dont know why… one hour later.. i have 0% in wan1 but 16% on wan2 of loss.

    Reply
